Overview

A Pressure Vessel is a container designed to reliably maintain its volume without deformation, even when subjected to internal or external fluid pressures from liquids or gases.
We offer a broad manufacturing spectrum, ranging from large-scale industrial units such as heat exchangers, reactors, and storage tanks to compact high-pressure reactors engineered for extreme temperature and pressure conditions. By utilizing specialized high-performance materials, our vessels are fully capable of handling processes involving highly corrosive media, ensuring long-term operational integrity in the harshest environments.

  • Design & Engineering
    according to ASME Standards

  • Certified by Domestic Industrial
    and Gas Safety Inspections

  • Wide Range of Impellers
    and Customizable Options

Sales & Support +82-42-602-8017
Product Catalog

Product Series Information

  • PIV Series

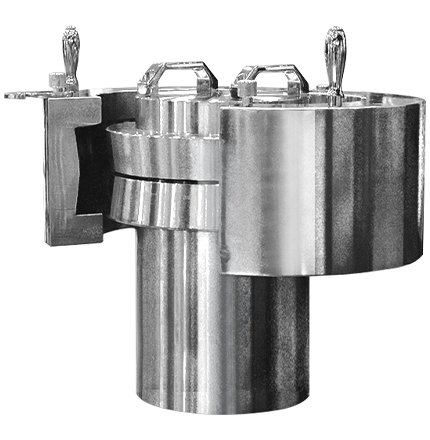

    Featuring a pin-type structure, this series maintains pressure integrity even while the cover is closed, offering exceptional durability and an extended service life. It is ideally suited for processes requiring rapid opening and closing under high-pressure conditions, such as Cold Isostatic Pressing (CIP) and Warm Isostatic Pressing (WIP).

  • CV Series

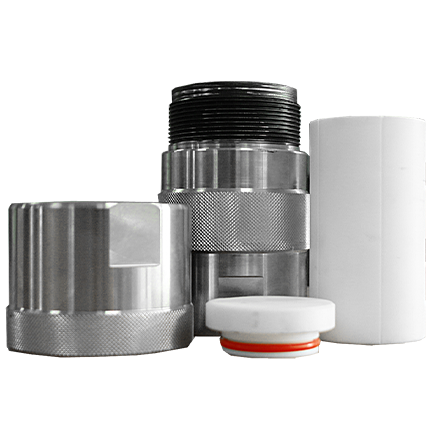

    Constructed with corrosion-resistant stainless steel and an internal vessel, this compact pressure vessel is specialized for chemical experiments. It utilizes a Teflon (PTFE) liner to ensure superior chemical compatibility.

  • CVB Series

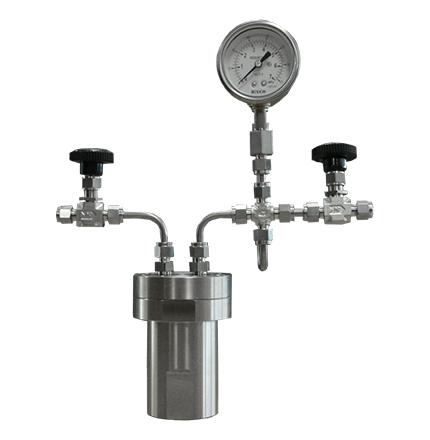

    Equipped with pressure monitoring ports and an Inlet/Outlet structure, the CVB series supports various options such as stirrers and temperature sensors. Its simple coupling mechanism makes it highly suitable for chemical research and laboratory testing.

  • BV Series

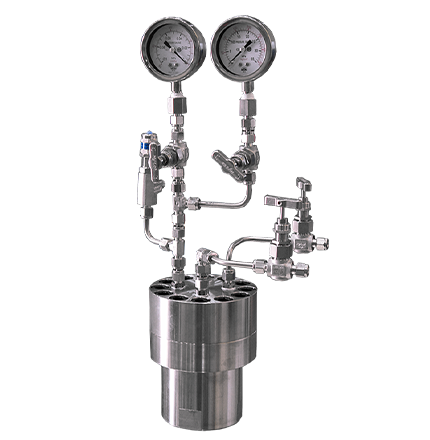

    Designed with a direct contact structure between the cover and body, sealed by a dedicated gasket. It includes a pressure gauge for internal monitoring and ports for fluid injection and discharge. As the most universal model, it is widely utilized for a broad range of chemical experiments and research purposes.

  • TV Series

    The smallest capacity line in our lineup, available from 2 ml to 81 ml. Despite its size, it can achieve high temperature and pressure conditions, making it perfect for high-precision experiments ranging from micro to small-batch scales.

  • VC Series

    Designed with a View Cell (Sight Glass) to allow direct observation of internal reactions. It is widely applied in industrial systems such as heat exchangers, deaerators, desalination plants, evaporators, catalytic reactors, distillation columns, and storage tanks for liquids and gases.

  • C-Clamp

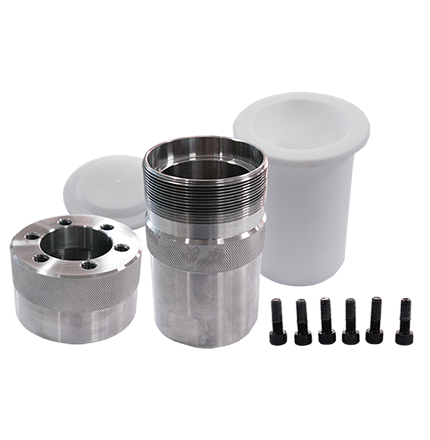

    A pressure vessel utilizing a Cap and Bolt fastening method, manufactured from high-grade stainless steel for excellent chemical resistance. It is extensively used in various industries, including coatings/inks, pharmaceuticals, cosmetics, textiles, chemical engineering, and food/fermentation.

Key Features

  • Safe Pressure Vessel Design

    We design pressure vessels in accordance with ASME standards and ensure maximum safety and reliability through rigorous domestic industrial and gas safety inspections.

  • Excellent Thermal, Pressure, and Corrosion Resistance

    By utilizing ASME material data tables and comprehensive corrosion reference charts, we design vessels that deliver superior corrosion resistance and stable performance even under extreme high-temperature and high-pressure conditions.

  • Flexible Liner Options

    We offer a wide range of internal liners, including Teflon, PEEK, and stainless steel (STS), allowing for flexible configurations tailored to your specific application and process requirements.

Product Specifications Dimensions and weight are subject to change depending on process requirements and selected options.

  • PIV
  • CV
  • CVB
  • BV
  • TV
  • VC
  • C-Clamp

How to select Order-made Type

Type Volume Temperature Pressure Material
PIV Required volume Required temperature Required pressure Required material
Type PIV
Volume Required volume
Temperature Required temperature
Pressure Required pressure
Material Required material
Series CV5 CV10 CV20 CV30 CV50 CV100 CV200
Volume(㎖) 5 10 20 30 50 100 200
Max Temp. (℃) 180
Max Pressure (bar) 100
Outside Vessel STS 316
Liner Teflon (200℃) / PEEK (230℃)
Seal of Liner O-ring Type
Closure Style Cap Closure
Main Bolt M40 X 2P M45 X 3P M52 X 3P M70 X 4P
Vessel Dimensions(㎜)-O.D 55 60 65 83
Vessel Dimensions(㎜)-O.L 100 110 128 155 132 195
Liner Dimensions(㎜)-I.D 15 20 26 45
Liner Dimensions(㎜)-I.L 32 42 60 90 64 127

How to select Order-made Type

Type Volume Temperature Pressure Material
CV Required volume Required temperature Required pressure Required material
Type CV
Volume Required volume
Temperature Required temperature
Pressure Required pressure
Material Required material

Caution

  • Select the appropriate material when using acidic or alkaline substances.
  • Determine optional specifications.
  • Check size limitations as the coupling method involves manual rotation.
  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.
Series CVB 5 CVB 10 CVB 20 CVB 30 CVB 50 CVB 100 CVB 200
Volume(㎖) 5 10 20 30 50 100 200
Max Temp. (℃) 180
Max Pressure (bar) 100
Outside Vessel STS 316
Liner Teflon
Seal of Liner Surface Sealing
Closure Style Cap Bolt Closure
Main Bolt M40 X 2P M45 X 3P M52 X 3P M70 X 4P
Vessel Dimensions(㎜)-O.D 55 60 65 83
Vessel Dimensions(㎜)-O.L 100 110 128 155 132 195
Liner Dimensions(㎜)-I.D 15 20 26 45
Liner Dimensions(㎜)-I.L 32 42 60 90 64 127

How to select Order-made Type

Type Volume Temperature Pressure Material
CVB Required volume Required temperature Required pressure Required material
Type CVB
Volume Required volume
Temperature Required temperature
Pressure Required pressure
Material Required material

Caution

  • Select the appropriate material when using acidic or alkaline substances.
  • Determine optional specifications.
  • Check size limitations as the coupling method involves manual rotation.
  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.

BCV (Vessel without internal liner)

Series BCV100 BCV200 BCV300 BCV500 BCV1000 BCV2000 BCV3785 BCV7570
Volume(㎖) 100 200 300 500 1ℓ 2ℓ 1 Gallon 2 Gallon
O-ring G25 G35 G40 G55 G70 G80 P90 P105
Max Temp.
O-ring Type(℃)		 200 ~ 300
Max Temp.
Metal Gasket Type(℃)		 350
Max Pressure
O-ring Type(bar)		 100
Max Pressure
Metal Gasket Type(bar)		 200
Body Material SUS 316
Main Bolt
O-ring Type		 M10 X 35ℓ M12 X 30ℓ M14 X 40ℓ M20 X 50ℓ M20 X 65ℓ M22 X 85ℓ M24 X 95ℓ
Main Bolt
Metal Gasket Type		 M16 X P1 X 50ℓ M18 X P1.5 X 55ℓ M20 X P1.5 X 55ℓ M22 X P1.5 X 65 M27 X P2 X 80ℓ M27 X P2 X 95ℓ M30 X P2 X 100ℓ M36 X P3 X 120ℓ
Vessel Dimensions(㎜)
O-ring Type O.D		 107 119 134 175 201 230 251
Vessel Dimensions(㎜)
O-ring Type O.L		 170 203 236 250 328 423 609 838
Vessel Dimensions(㎜)
Metal Gasket Type O.D		 99 113 120 139 169 199 224 269
Vessel Dimensions(㎜)
Metal Gasket Type O.L		 170 203 236 250 328 428 609 838
Liner Dimensions(㎜)
O-ring Type I.D		 38 48 53 68 83 93 108 123
Liner Dimensions(㎜)
O-ring Type I.L		 90 115 140 200 295 424 640
Liner Dimensions(㎜)
Metal Gasket Type I.D		 35 45 50 60 75 95 120 145
Liner Dimensions(㎜)
Metal Gasket Type I.L		 110 130 150 180 230 290 340 460

BCLV (Vessel with internal liner)

Series BCLV100 BCLV200 BCLV300 BCLV500 BCLV1000
Volume(㎖) 100 200 300 500 1000
O-ring G25 G35 G40 G55 G70
Max Temp.
Teflon/PEEK Liner(℃)		 Teflon 200 / PEEK 230
Max Temp.
STS Liner Type(℃)		 350
Max Pressure
Teflon / PEEK Liner (bar)		 100
Max Pressure
STS Liner Type(bar)		 200
Outside Vessel Material
Teflon / PEEK Liner Type		 SUS 316
Outside Vessel Material
STS Liner Type		 SUS 316
Liner
Teflon / PEEK Liner Type(℃)		 Teflon 200 / PEEK 230
Liner
STS Liner Type(℃)		 350
Main Bolt
Teflon / PEEK Liner Type		 M10 X 35ℓ M12 X 30ℓ M14 X 40ℓ M20 X 50ℓ M20 X 65ℓ
Main Bolt
STS Liner Type		 M18 X P1.5 X 55ℓ M20 X P1.5 X 55ℓ M22 X P1.5 X 65ℓ M27 X P2 X 80ℓ
Vessel Dimensions(㎜)
Teflon Liner Type O.D		 107 119 134 175 201
Vessel Dimensions(㎜)
Teflon Liner Type O.L		 170 203 236 250 328
Vessel Dimensions(㎜)
STS Liner Type O.D		 113 120 139 169
Vessel Dimensions(㎜)
STS Liner Type O.L		 179 224 259 283 368
Liner Dimensions(㎜)
Oring Type I.D		 38 48 53 68 83
Liner Dimensions(㎜)
O-ring Type I.L		 90 115 140 200
Liner Dimensions(㎜)
STS Liner Type I.D		 35 45 50 60 73.5
Liner Dimensions(㎜)
Metal Gasket Type I.L		 106 136 156 180 240

How to select Order-made Type

Type Volume Temperature Pressure Material
BCV / BCLV Required volume Required temperature Required pressure Required material
Type BCV / BCLV
Volume Required volume
Temperature Required temperature
Pressure Required pressure
Material Required material

Caution

  • Select the appropriate material when using acidic or alkaline substances.
  • Determine optional specifications.
  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.

20000 psi 9/16″ Tube

Series TV11 TV12 TV13 TV14 TV15
Volume(㎖) 5 7.5 10 12.5 1.5
Max. Temp.(℃) - SUS 400
Max. Pressure (bar) 1,300
Body Material Stainless steel 316
Seal Type Cone Thread Sealing
Closure Style Screw Closure
Vessel Dimensions(㎜)
Overall Height		 165 215 266 317 368
Inside Dimensions(㎜)
Inside Diameter		 7.93
Inside Dimensions(㎜)
Inside Depth		 101 152 203 254 304
Tube size 9/16"

20000 psi 1″ Tube

Series TV16 TV17 TV18 TV19
Volume(㎖) 24 41 65 81
Max. Temp. (℃) 400
Max. Pressure(bar) 1,300
Body Material Stainless steel 316
Seal Type Cone Thread Sealing
Closure Style Screw Closure
Vessel Dimensions(㎜)
Overall Height		 228 330 482 584
Inside Dimensions(㎜)
Inside Diameter		 14.28
Inside Dimensions(㎜)
Inside Depth		 152 254 406 508
Tube size 1"

How to select Order-made Type

Type Volume Material
TV Required volume Required material
Type TV
Volume Required volume
Material Required material

Caution

  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.

How to select Order-made Type

Type Volume
VC Required volume
Type VC
Volume Required volume

Caution

  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.

How to select Order-made Type

Type Volume Temperature Pressure Material
C-clamp Required volume Required temperature Required pressure Required material
Type C-clamp
Volume Required volume
Temperature Required temperature
Pressure Required pressure
Material Required material

Caution

  • As it is a custom-order manufacturing system, vessel size and capacity can be freely selected according to the operating environment.
